Description

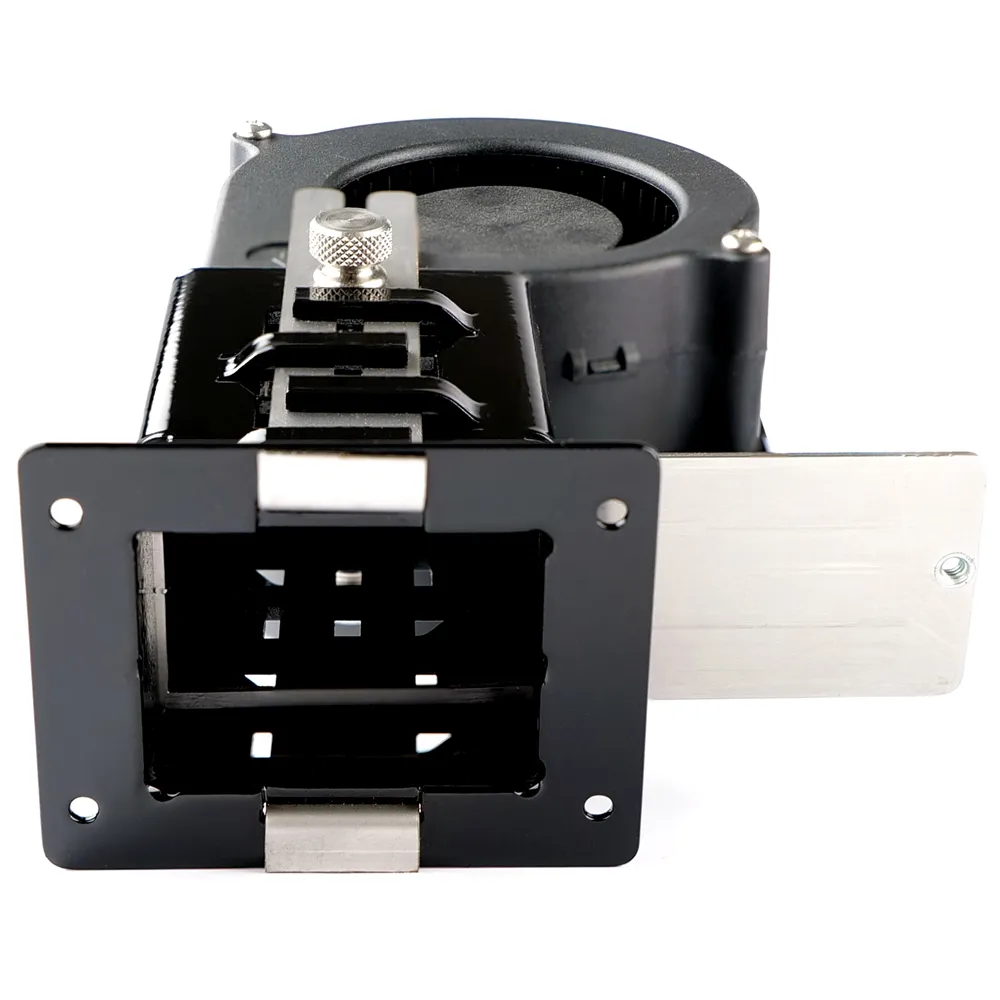

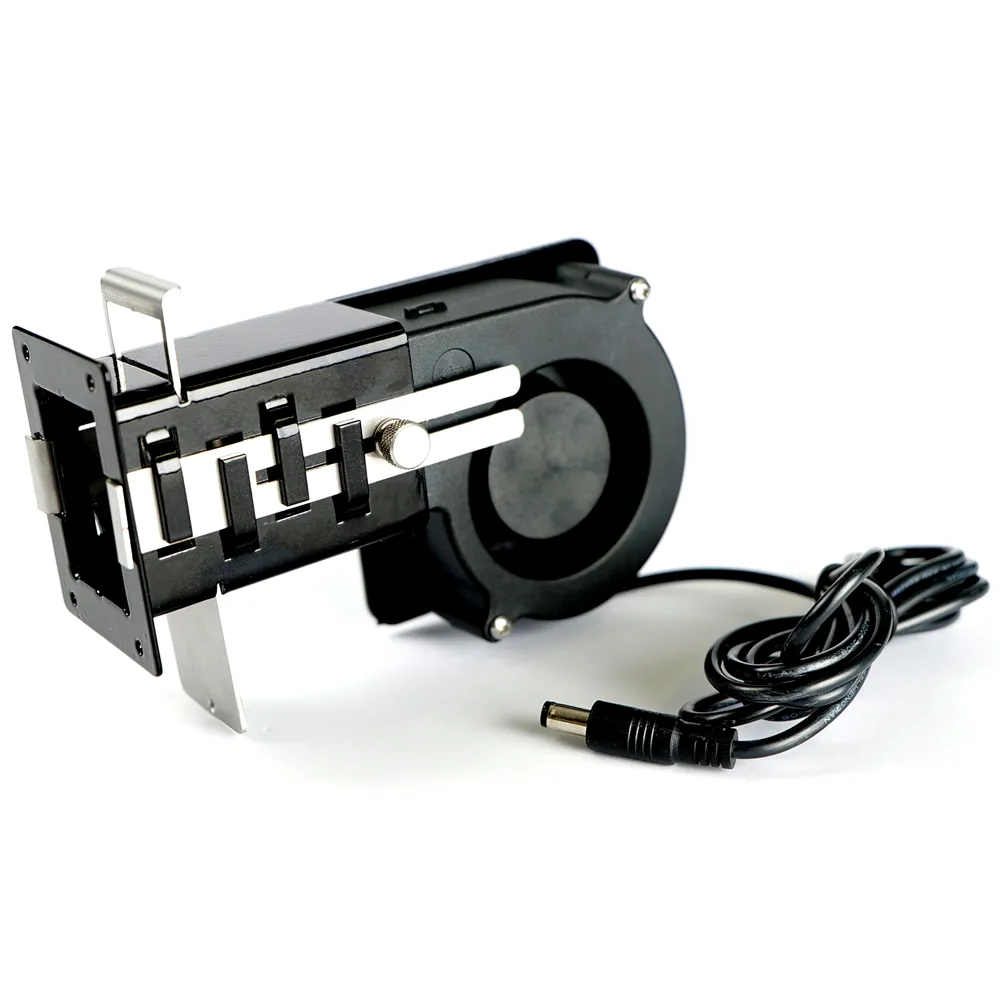

Variable Speed 20 CFM Blower used with FireBoard Drive to maintain precise temperature control.

FireBoard’s new fan design allows easy mounting/switching of adapters.

Powerful blower that can be installed on many smokers using the adapter plates (included). Built-in sliding damper to fine tune airflow.

• Small/Medium Adapter Plate: 70mm x 50mm.
• Large/XL Adapter Plate: 87mm x 77mm.

* Nozzle Adapter coming soon.
* Ball Valve Adapter coming soon.

Specifications

• Variable Speed, powered by FireBoard’s internal battery **.
• Power source: 12 VDC, 0.68A, 8W (not included).
• Cable length: 1.4m.
• Power connector: 2.5mm barrel plug.
• Blower maximum flow rating: 20 CFM.
• Blower opening: 30mm x 40 mm.
• Flange outer dimension: 49mm x 62mm.
• Flange mounting hole distance: 34mm x 52mm, hole size, 3mm in diameter.

Note: Blower does NOT include the Drive Fan Control Cable, which is needed to use a fan with the FireBoard 2 or FBX11.

FireBoard Drive and Pro models will power fan directly, no Drive Fan Control Cable necessary.

** For maximum fan speed, external power is required.
